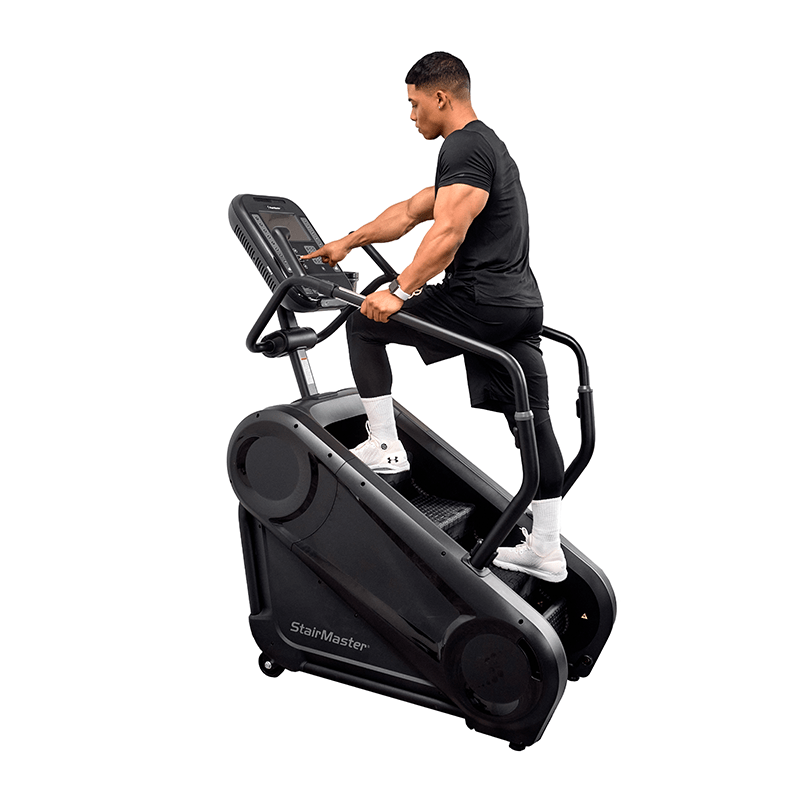

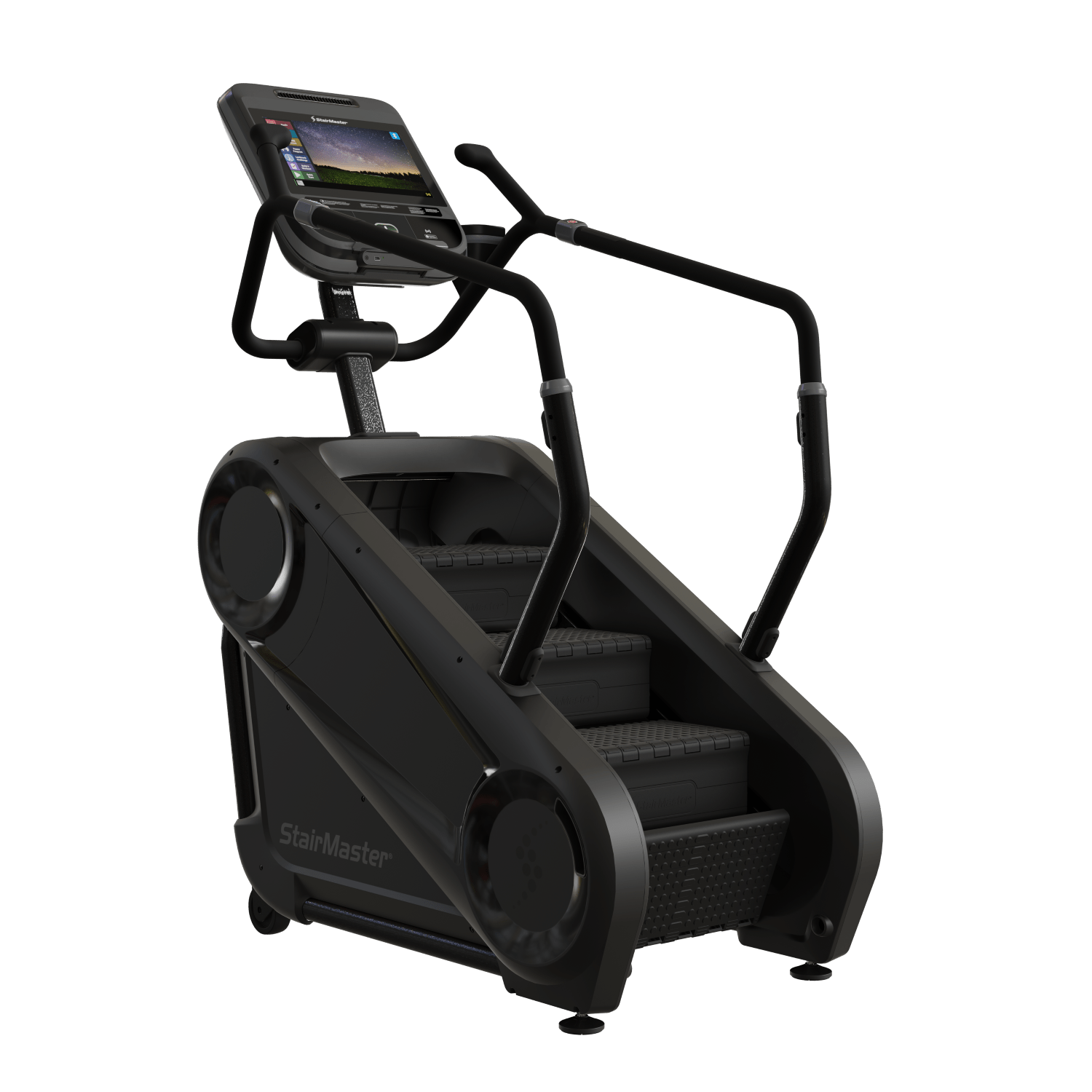

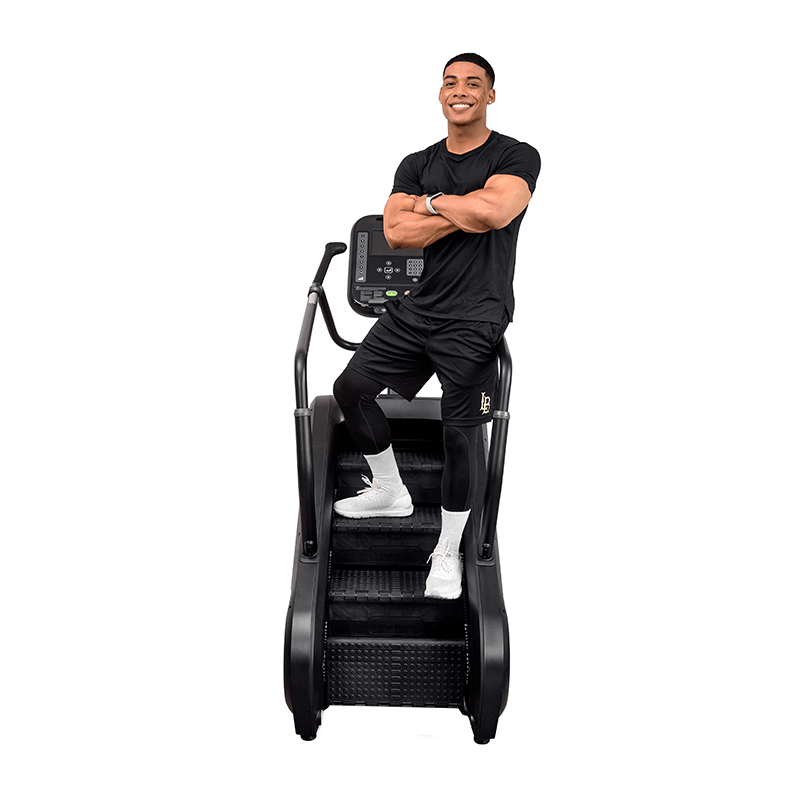

StairMaster 4 Series 4G Compact StepMill w/ 15″ Embedded Display – New for 2026

Answering the call for a StepMill that can fit into more spaces and reach more users, we are excited to introduce the much anticipated StairMaster 4G. As the newest addition to the StairMaster family, the StairMaster 4G StepMill delivers the same heart-pounding cardio workout with a great calorie burn through a low-impact stair climb. Designed to fit perfectly into hospitality, boutique, and multihousing training centers, the 4G has harnessed the quality members have experienced over the past 4 years with the StairMaster 10G and the recently launched StairMaster 8Gx. With a footprint of 54” x 29” and a height clearance of only 8 feet, the 4G is the solution the fitness equipment market has been missing.


The 4G has a 15″ Embedded OpenHub console, a safety-stop sensor and a redesigned handrail system that supports multiple climbing positions and includes integrated speed and stop controls for a better user experience. Additionally, the service panel is secured with four fasteners and can be removed, allowing for easy access to the drivetrain and electronics.

Features

Handrail design features integrated speed controls, stop button and contact heart rate grips

Telemetry and contact heart rate measuring system

Personal cooling fans create a more rewarding workout
Bottle holder and accessory rack for personal devices

Device Connectivity
Our OpenHub 15” Embedded Console connects directly with an Apple Watch and Samsung Galaxy Watch for real-time data sharing between gym equipment and watch. NFC technology allows for a simple tap to pair connection, making data tracking that much easier.

Benefits of Using an Indoor Stair Climber
With so many cardiovascular benefits, a stepper is a great addition to any workout routine. Stair climbers can offer a relaxed, comfortable session or a high-intensity workout. Here are some other advantages to climbing stairs:

A high-cardio, low-impact workout that burns a high level of calories
Allows for a wide range of motion that improves joint flexibility
Improves core stability
Improves coordination and balance
Targets a wide variety of muscles groups across the body

See more benefits of using a StairMaster.
Muscles Targeted

Gluteals
Hip Flexors
Illo-Psoas
Illo-Tibial Band
Piriformis
Tensor Fascia Latae
Trunk Stability Muscles

15″ Embedded Touchscreen Console:
The 15″ embedded touchscreen display adds a premium new look and experience to the already-great StairMaster cardio line. The new embedded console offers a new user interface design.  With standard features like HDMI streaming, Bluetooth connectivity and TV tuner options, this is a display that has something for every user.

Allows adjustment of step rate in single SPM increments
Global TV tuner options
Set Top Box Ready display option works with any A/V set up that uses a Set Top Box for each piece of equipment, such as IPTV and Satellite
Bluetooth connection for user workout data tracking
USB charging port
HDMI streaming from personal device (with HDMI cable, not included)
Multiple program options
Landmark Challenge Program allows users to climb well-known landmarks from around the world like the Eiffel Tower, the Statue of Liberty and the Taj Mahal
StairMaster 20 HIIT Program designed by World Record Holder, Olympic Trails Qualifier and Master Trainer, Sonja Friend-Uhl
RunTV provides access to a curated collection of virtual environments, fitness videos, feature films and more
Pre-wired for ECOFIT asset management solution

Frame

Material: Powder Coated Steel Frame
Standard Color Options: Matte Black (-60)

Product Weight: 348 lbs (158 kg)
Shipping Dimensions: 49″ x 30″ x 43″ (125 cm x 76 cm x 109 cm)

Specifications

Length: 54″ (137 cm)

Width: 29″ (74 cm)
Height: 64″ (163 cm)
Step Surface: 10″ x 18″ (25 cm x 46 cm)
Step Height: 6″ (15.25cm)
Step Rate: 20 Levels ranging from 24-162 steps per minute
Step-Up Height: 14″ (36 cm) to first flat step
Recommended Ceiling Height: 8 ft (244 cm)

Max User Weight: 350 lbs (159 kg)

Shipping Weight: 434 lbs (197 kg)
Drive System: Generator
Electrical Requirements: 12 V/5 Amp power supply

Warranty
Light Commercial Use:

Limited 10 year warranty on structural frame not including coatings
All other components warranted for 5 years parts and 2 years labor

Consumer Use:

Limited 10 year warranty on structural frame not including coatings
Motor & MCB 5 years parts and labor
All other components warranted for 10 years parts and 3 years labor

Assembly

* Please note the following tools are required for the assembly of your new StairMaster 4G:

6mm Allen Key
13mm Socket
Ratchet Wrench
13mm Open-Ended Wrench
#2 Phillips Head Screwdriver

If you need a list of referrals for local installers or would like to request white glove delivery please contact your sales rep or email status@totalbodyexperts.com for a quote. If you have already received your equipment and would like to request help with the assembly of your new unit please contact service@totalbodyexperts.com

Assembly Video
