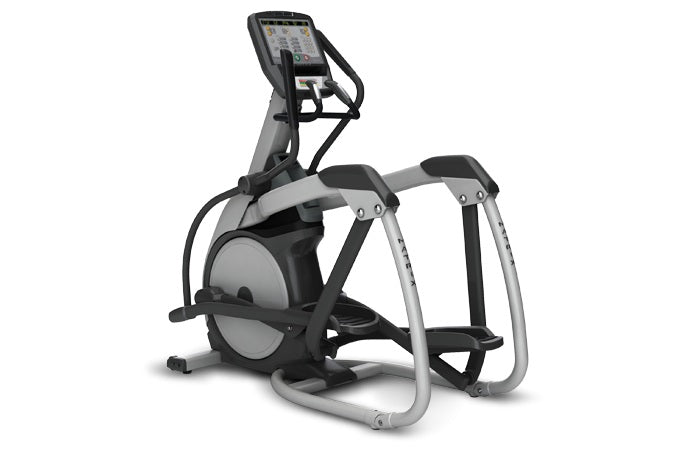

Matrix E5x Elliptical

The maintenance-free drive is completely self-powered and cord-free, providing cost-savings and freedom of placement within the facility. The tapered, dual-action handlebars provide a total-body workout that strengthens core muscles. The contoured handle design accommodates a wide range of user sizes for a more comfortable workout.

Features

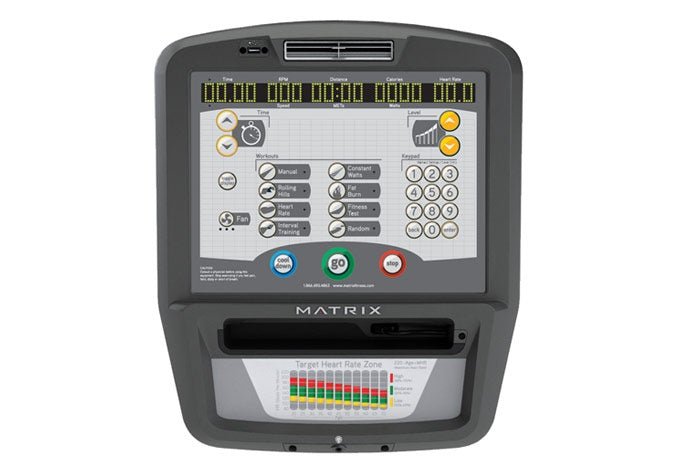

Intuitive LED console display
Compatible with iPod for charging
Integrated 3-speed personal fan
WiFi enabled for use with Asset Management System
21” stride length accommodates all users for a comfortable, efficient, and natural workout
Constant Rate of Acceleration and our patented suspension design delivers a perpetually smooth motion free of wheels and tracks

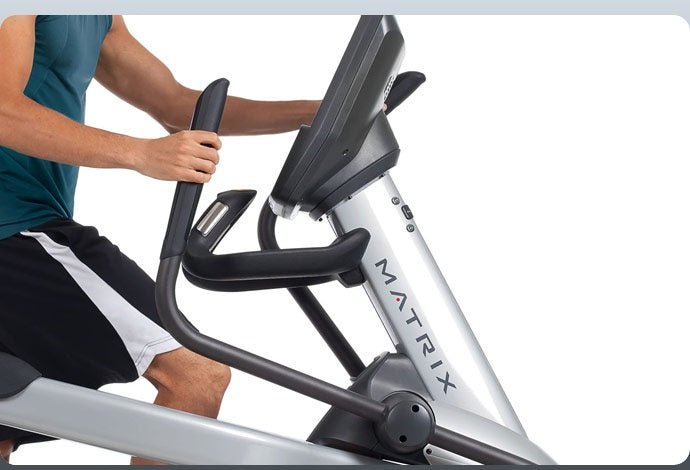

Contralateral action with tapered, dual action handlebars mimics the body’s true movement and proper fit
Ergo Form™ Grips with integrated resistance controls enhances comfort and accessibility to key functions
Low 9.5” step-on height for easy accessibility
Removable disk for easy serviceability
Self-powered system provides cost-savings and freedom of placement within facility

Specifications

Console

Contact HR: Yes
Display Type: Dot-matrix LED
Display Feedback: Time, distance, calories, speed, heart rate, METs, Watts, RPM
Languages Available: English, German, French, Italian, Spanish, Dutch, Portuguese, Japanese, Swedish, Finnish
Resistance Range: 1-25
Workouts: manual, rolling, intervals, fat burn, random, fit test, target HR, constant watts
CSAFE: Yes
Netpulse Ready: Yes
Pause Button: Yes
One-Button Quick Start: No
On-The-Fly Program Change: Yes
Integrated Vista Clear™ Television Technology: No
Fitconnexion Ready: Yes
WiFi: Yes – compatible with Asset Management
iPod Integration: Yes – charging Only
Nike + iPod Compatible: No
Personal Fan: Yes
Virtual Active Ready: No
Asset Management Compatible: Yes
Multi-Language Display: Yes
Manager Mode: Yes
Engineering Mode: Yes
Service Mode: Yes
Button Type: Membrane
Wireless HR: Yes
USB Port: Yes
Reading Rack: No

EXTRAS

Bottle Holder: Yes

FRAME

Stride Length: 21″ / 53.34 cm
Footpad Insert Type: No
Q Factor: 2.5″ / 6.35 cm
Handle Bar Type: Multi-position dual action / Custom ergo-bend stationary
Remote Buttons: Yes
Resistance System: Brushless Generator
Max User Weight: 400 lbs / 182 kg
RJ45 Port: No

Dimensions

Electrical Requirements: Self-Powered – Powered 100v-240v – 50/60Hz AC
Minimum Watts: 21 Poweerd & Self-Powered
Minimum Rpm: 25 Powered & Self-Powered
Assembled Dimensions: 70″ x 29.2″ x 68.5″ / 178 x 74 x 174 cm
Assembled Weight: 398 lbs / 181.0 kg
Shipping Weight: 425 lbs / 193.6 kg
